Building PP Hollow Board Plastic Construction Formwork

One 20ft container
MOQ
USD 0.1 - 16 per pcs
Price
Building PP Hollow Board Plastic Construction Formwork
Features Gallery Product Description Request A Quote
Features
Specifications
Max Width: 2550mm
Thickenss: 12mm 15mm 18mm
GSM: 8000gsm 9000gsm
Printing: Screen Printing
Color: White, Black, Blue, Yellow, Grey Etc
Material: PP
Size: 1220×2440mm (4×8 Feet), 1000x2000mm Etc
Use Time: At Least 60 Times
High Light:

Hollow Board Plastic Construction Formwork

,

PP Hollow Board Formwork

Basic Infomation
Place of Origin: China
Brand Name: PPP Solution
Certification: CO
Model Number: PCF-10
Payment & Shipping Terms
Packaging Details: wood pallet
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 tons per day
Product Description

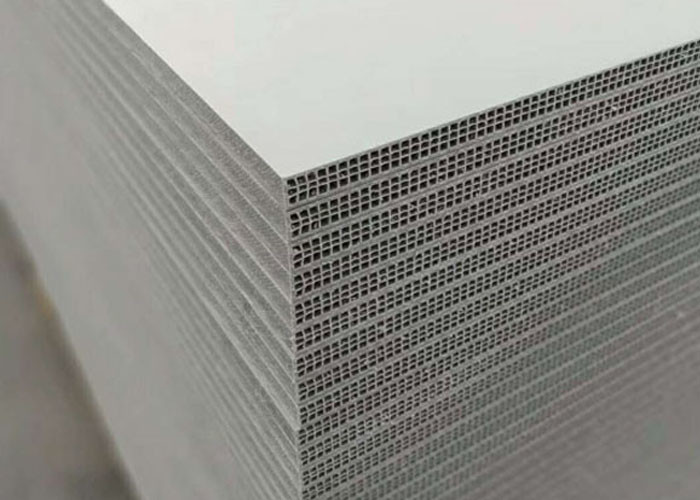

Building Plastic Construction Formwork PP Corrugated Hollow Board

Plastic Construction Formwork also called PP hollow formwork is made of modified PP powder with other additives by heating and extruding. It has high reuse times and water proof can replace troditional plywood. Eco friendly and easy to assemble. It is a style of building concrete structures with reusable plastic molds. This method requires almost no labor skills, gets the job done in record time, with minimal wastage in the process.



The Plastic Contruction formwork has the commonality of traditional wood formwork, steel formwork and more features than conventional formwork. The hollow plastic building formwork has scientific structure, stronger strength, good toughness and strong bearing capacity; the thickness of the template can be selected according to the thickness of the wall and the bearing capacity. It can be reused more than 60 times, no water absorption, corrosion resistance, green environmental protection, and can effectively reduce engineering costs.





Plastic Formwork Specification

Thickness(mm) Length*Width(mm) Weight(kg)
15 915*1830 14-15
16 915*1830 15-16
17 915*1830 16-17
18 915*1830 17-18
15 1220*2440 24-25
16 1220*2440 26-27
17 1220*2440 27-28
18 1220*2440 29-30
All raw materials for each sheet are produced using new materials from Sinopec Corp., and do not contain any recycled raw materials.In -10℃-40℃ temperature weather, the expansion of the sheet is <1mm.


PP Hollow Plastic Contruction Formwork Beam Form provides the contractor with a rapid and cost effective method of constructing on site concrete ground beams and pile caps.



White-Plastic-Formwork-for-Concrete-Building-Construction



Manufactured from heavy duty polypropylene in 12mm -18mm thickness, Hollow Corrugated Beam Form offers many advantages over traditional formwork. Plastic formwork is a new product to replace wood formwork, composite steel formwork, bamboo-wood bonding formwork and all-steel large formwork.



Plastic formwork VS Traditional formwork

Item Hollow Plastic Formwork PVC Formwork Wooden Formwork Aluminium Formwork
Price(USD) 12.53 11.24 5.25 119.94
Available times 50 20 6 100
Drop test(10m) No break No break break Severe deformation
Abrasion resistance Excellent Excellent Bad Excellent
Deformation condition No deformation No deformation Deformation No deformation
Stripping process Easy Easy Difficult Difficult
Book nail Easy Difficult Easy No nails
Dilatability and shrinkage Very little Variation with temperature Little Little
Energy-saving Recycled Recycled Large lumber consumption Recycled
Weight(kg/㎡) 7 13 7.2 25
Scrap value(USD/㎡) 4.20 2.70 0.15 29.99
Share cost(USD) 0.17 0.42 0.84 0.90



Durable, easy to manage corrugated beam form for the construction of ground beams on site. Improve the speed, efficiency and quality of your foundation work by utilising pre-cut shuttering that can simply be dropped into trenches without issue.

Plastic beamform shuttering reduces the amount of soil to be removed, as well as the amount of concrete used. There’s no need to use chemicals such as mould oils, and you’re spending less time preparing your trenches and removing steel or ply shuttering.

It also requires minimal skill input from ground workers, significantly improving efficiency all-round.



PP Corrugated Plastic Formwork Production



Product Advantage:

  1. Reuse more than 60 times
  2. Waterproof
  3. No need oil, easily install and remove only tapping formwork can be falled off
  4. No expansion, no shrinkage, high strength
  5. Bearable temperature:-10-70ºC
  6. Anti slip
  7. Shorten construction period
  8. Glass glue can repair scratch on the surface
  9. Plastic plug can repair the12-24mmdiameter hole
  10. Rinse with water will be clean
  11. Rent and reuse another construction site
  12. Recycle at about half price in any other plastic factory

Plastic Formwork PP Plastic Hollow Board Construction Concrete
