Polypropylene Pp Plastic Honeycomb Panel For Automotive Industry

1000 pcs
MOQ
Negotiation
Price
Polypropylene Pp Plastic Honeycomb Panel For Automotive Industry
Features Gallery Product Description Request A Quote
Features
Specifications
Material: PP
Thickness: 3-8mm
Color: White, Black, Grey, Blue Etc
Structure: 6 8 Bubble
Grade:: FR, Antistatic, Corona, Conductive
Size: 2400x1220, 2000x1000 Etc
Width: Max 1250mm
Length: Custom
GSM: 500-4500gsm
Printing: Screen Printing
High Light:

Polypropylene Pp Plastic Honeycomb Panel

,

Automotive Industry Plastic Honeycomb Panel

Basic Infomation
Place of Origin: China
Brand Name: DEALS
Certification: CO
Model Number: BGB-14
Payment & Shipping Terms
Packaging Details: wood pallet
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 tons per day
Product Description

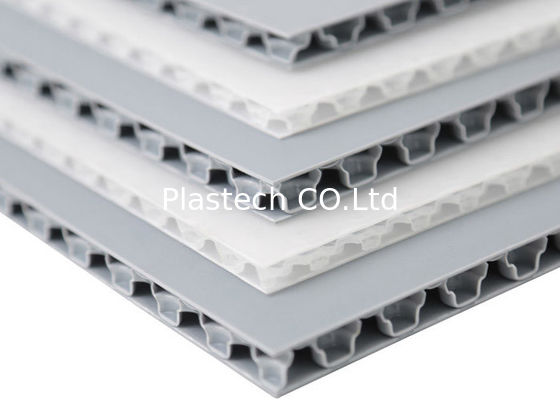

Polypropylene pp plastic honeycomb panel for automotive industry



PP honeycomb panel description


PP honeycomb panel is a kind of alveolar 100% PP sheet with versatility and high performance. This is a three-layer board consisting of three polypropylene layers, the middle layer is thermoformed into a unique and strong structure, with a weight range of 700 gr/sqm to 4500 gr/sqm and a thickness range of 3 to 30 mm

The product's versatility, efficiency (lightweight but high resistance), wide processing and lamination possibilities (used with PP and PET textiles, carpets, EPP foam and other decorative films) are ideal for this board Alternatives can be used for more expensive and less cost-effective materials, as well as the best solutions to meet the needs of different sectors: automobiles, steel mills, wood mills, furniture factories, cosmetics, pharmaceuticals, cleaning, glass factories, food and Drinks, graphics, advertising, promotions and logistics.

Polypropylene honeycomb sheets have been widely used in the automotive field because of their ductility, flexibility, excellent price/quality ratio and no hint of the use of glue. In this branch, there are two main applications: packaging, realizing multi-way foldable boxes, and more generally, realizing automotive interior parts: headrest, seat back cover, luggage cover, door panel. In this case, sheets with carpets or textiles can be laminated "on-line" without glue, which obviously saves a lot of cost.

Polypropylene honeycomb panel customers in the automotive industry, such as Audi, BMW, Toyota, etc.

Available options:
1. Print with custom graphics
2. Customize colors according to requirements
3. Anti-static treatment
4. Anti-UV
5. Provide ESD options
6. Food sealing edge
7. Surface treatment: Haircell or relief
8. Surface lamination of wool, foam or TPO materials





Items Modle
PP bubble board PP bubble board with non-woven fabric
Thickness: 3-11mm 3-12mm
Width: Max. Width 1.4M. 900-1300mm are popular. Other width can be customized.
Size: 1000x2000mm, 1200x2400mm, 1220x2440mm are standard. Other size can be customized.
Colour: Black, gray, beige are available.
Other colors can be customized according to RAL / Pantone.
Board Black, gray, beige are available.
Other colors can be customized according to RAL / Pantone.
Fabirc Black, light black.
Weight: 750-3800gsm. Board 750-3500gsm
Fabirc 80-300gsm
Surface: bubble surface Single or double side for fabric lamination is available.



Features of PP honeycomb panel:

•High strength/weight ratio
•Corrosion resistance, fungus resistance, rot resistance, chemical resistance and moisture resistance
•Sound and vibration reduction
• Absorb energy
• Thermoformable
• Use temperature up to 180°F
• Recyclable
