Polypropylene pp plastic honeycomb panel for automotive industry
PP honeycomb panel description

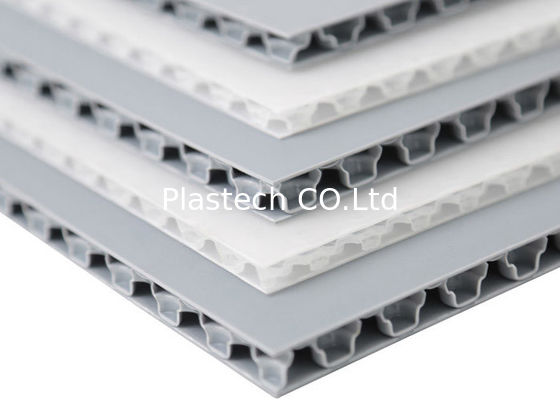

PP honeycomb panel is a kind of alveolar 100% PP sheet with versatility and high performance. This is a three-layer board consisting of three polypropylene layers, the middle layer is thermoformed into a unique and strong structure, with a weight range of 700 gr/sqm to 4500 gr/sqm and a thickness range of 3 to 30 mm
The product's versatility, efficiency (lightweight but high resistance), wide processing and lamination possibilities (used with PP and PET textiles, carpets, EPP foam and other decorative films) are ideal for this board Alternatives can be used for more expensive and less cost-effective materials, as well as the best solutions to meet the needs of different sectors: automobiles, steel mills, wood mills, furniture factories, cosmetics, pharmaceuticals, cleaning, glass factories, food and Drinks, graphics, advertising, promotions and logistics.
Polypropylene honeycomb sheets have been widely used in the automotive field because of their ductility, flexibility, excellent price/quality ratio and no hint of the use of glue. In this branch, there are two main applications: packaging, realizing multi-way foldable boxes, and more generally, realizing automotive interior parts: headrest, seat back cover, luggage cover, door panel. In this case, sheets with carpets or textiles can be laminated "on-line" without glue, which obviously saves a lot of cost.
Polypropylene honeycomb panel customers in the automotive industry, such as Audi, BMW, Toyota, etc.
Available options:
1. Print with custom graphics
2. Customize colors according to requirements
3. Anti-static treatment
4. Anti-UV
5. Provide ESD options
6. Food sealing edge
7. Surface treatment: Haircell or relief
8. Surface lamination of wool, foam or TPO materials
| Items |
Modle |
| PP bubble board |
PP bubble board with non-woven fabric |
| Thickness: |
3-11mm |
3-12mm |
| Width: |
Max. Width 1.4M. 900-1300mm are popular. Other width can be customized. |
| Size: |
1000x2000mm, 1200x2400mm, 1220x2440mm are standard. Other size can be customized. |
| Colour: |
Black, gray, beige are available.
Other colors can be customized according to RAL / Pantone. |
Board |
Black, gray, beige are available.
Other colors can be customized according to RAL / Pantone. |
| Fabirc |
Black, light black. |
| Weight: |
750-3800gsm. |
Board |
750-3500gsm |
| Fabirc |
80-300gsm |
| Surface: |
bubble surface |
Single or double side for fabric lamination is available. |
Features of PP honeycomb panel:
•High strength/weight ratio
•Corrosion resistance, fungus resistance, rot resistance, chemical resistance and moisture resistance
•Sound and vibration reduction
• Absorb energy
• Thermoformable
• Use temperature up to 180°F
• Recyclable
