Square MBR Membrane Welding Machine Square Flat Eddy Current Welding

Basic Information
Place of Origin: China
Brand Name: PPP Solution
Certification: CO
Model Number: MBR-1
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wood pallet
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 sets per month
Material: MBR Size: Custom
Layer: One Layer, Two Layer Or Three Layer Control: PLC OMRON
Pneumatic Components: SMC Cylinders Detection Sensors: Keynes, Japan Or Otis, Japan
Servo Motor: Ankawa ,Japan Line Track: Shangyin, Taiwan
Besring: NSK Nippon Ernsk Speed: 0.8-1.6 / 2-4m/ Min
High Light:

Flat Membrane Welding Machine

,

MBR Membrane Welding Machine

Square MBR Membrane Welding Machine Square Flat Eddy Current Welding

Flat MBR Membrane Welding Machine adopts hydraulic cylinder mode which is two-axis linkage. This kind structure solves the balance problems when welding. When welding, membrane edge is even and smooth looks very nice. Welding edge is very strong for long time use.

MBR membrane welding machine is manuly operate with two buttons for safety. Push two button, then start to produce.

Customizable flat film specifications: :0.8m² / 1.0m² / 1.5m²

Equipment size:2200*1700*2100mm

Weight:about 1900kgs

Advantage :The flat film using eddy current welding is more uniform than the heat-welded flat film, and does not damage the diaphragm. The ABS sheet with fine shrinkage can also meet the welding requirements.

1. Production beat: 45s-60s/ face

2. Operator: 1 person

3. Voltage: 380V single-phase three-wire system

4.Frequency: 50/60Hz

5.Power: 22.5KW

6.Control voltage: 24V

7.Compressed air pressure:>0.6MPa Flow rate: 0.55m3/min

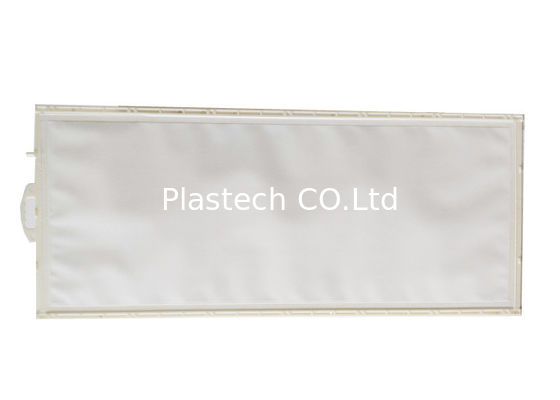

Flat Square MBR Membrane

The bottom die adopts the yielding elastic sliding platform and the supporting force is more stable.Compact and reasonable structure design makes operation and maintenance more human.

Eddy current welding is adopted. Eddy current welding is more uniform than hot-melt capacity welding, without damaging membrane and can meet the welding requirements for ABS plate with slight shrinkage.

Square MBR Membrane Welding Machine Square Flat Eddy Current Welding 1

Membrane Bioreactor (MBR) process is a combination of biological wastewater treatment and membrane filtration. Biodegradable pollution such as BOD is reduced by activated sludge. Following biological treatment, treated water is separated from activated sludge by microfiltration membrane.

Flat MBR Membrane Welding Machine is designed for Membrane Bioreactor welding equipment. It uses plastic hot plate welding technology on flat film welding processing.

The equipment used in flat membrane, water filter membrane, cell filter membrane, MBR plate membrane, membrane filter plate, non-woven fabrics plate membrane, polymer plate film, immersion plate film and other products of welding

Function Configuration Information:

1. Pneumatic Components: SMC cylinders

2.Electronically Controlled PLC: OMRON Omron

3.Operation Interface: 7″ touch screen

4.Detection Sensors: Keynes, Japan or Otis, Japan

5.Servo Motor: Ankawa ,Japan

6.Line Track: Shangyin, Taiwan

7.Besring: NSK Nippon Ernsk
