PVDF Hollow Fiber UF Membrane Welding Machine Tube PTFE Nonwoven Fabric

1 set
MOQ
Negotiation
Price
PVDF Hollow Fiber UF Membrane Welding Machine Tube PTFE Nonwoven Fabric
Features Gallery Product Description Request A Quote
Features
Specifications
Material: PVDF/ PTFE
Diameter: 5mm, 6mm, 8mm, 10mm, 12.7mm
Layer: One Layer, Two Layer Or Three Layer
Control: PLC OMRON
Pneumatic Components: SMC Cylinders
Detection Sensors: Keynes, Japan Or Otis, Japan
Servo Motor: Ankawa ,Japan
Line Track: Shangyin, Taiwan
Besring: NSK Nippon Ernsk
Speed: 0.8-1.6 / 2-4m/ Min
High Light:

Tubular Membrane Welding Machine

,

UF Membrane Welding Machine

Basic Infomation
Place of Origin: China
Brand Name: PPP Solution
Certification: CO
Model Number: TMW-3
Payment & Shipping Terms
Packaging Details: wood pallet
Delivery Time: 30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 sets per month
Product Description

PVDF Hollow Fiber UF Membrane Welding Machine Tube PTFE Nonwoven Fabric

Polyvinylidene difluoride PVDF Ultra filtration Tubular Membrane Welding Machine are designed and improved based on imported equipment. The machine is produced for welding nonwoven fabric tube PVDF for modules, also called PVDF Hollow Fiber UF Membrane.Polyvinylidene difluoride (PVDF) membrane filters are mechanically strong, PVDF material hollow fibers membrane elements, provide high performance filtration function, advantages of PVDF UF membrane filter compared to conventional treatment such as clarifies and media filters, are its high tolerance to feed water quality upsets, absolute barrier and improved output stable water quality.

PDVF tubular fiber membrane welding machine

Now Our machine can makes coiled pipe, welded pipe and inner scraping film completed at one time.

Polyvinylidene Difluoride Membrane Tube PVDF

Equipment dimensions: Length 1450m x width 1100 x height 2200mm

Voltage: AC 220V single-phase three-wire system

Frequency: 50/60Hz

Power: 8.3KW

Control voltage: 24V

Compressed air pressure:>0.6MPa Flow rate: 0.55m3/min

The machine can produce filter tube specifications: diameter 8mm and diameter 12.7mm

Non-woven fabric width: 17.5mm and 24.5mm

Welding layers: 1~3 layers Support overlap and staggered soldering

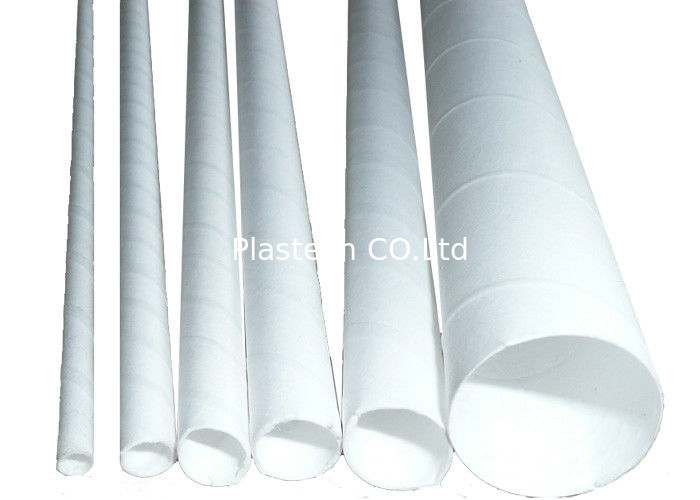

5mm, 6mm, 8mm, 10mm, 12.7mm PVDF PTFE Tubular Membrane

It can produce tubular membranes in diameter 5mm, 6mm, 8mm, 10mm, 12.7mm etc. And non-woven fabric layers in one layer, two layer or three layer based on customer requirements.

The machine can do two kind welding : multil-layer overlay welding or double-layer dislocation welding.

Tubular Membrane Welding Machine is also called ultrasonic welding machine, ultrasonic machine, welding machine. The machine adopts ultrasonic welding, tubular membrane substrate (non-woven) welding into infinite long tubular, cooperate with relevant coating process to produce tubular ultrafiltration membrane.

Function Configuration Information:

1. Pneumatic Components: SMC cylinders

2.Electronically Controlled PLC: OMRON Omron

3.Operation Interface: 7″ touch screen

4.Detection Sensors: Keynes, Japan or Otis, Japan

5.Servo Motor: Ankawa ,Japan

6.Line Track: Shangyin, Taiwan

7.Besring: NSK Nippon Ernsk

PVDF Hollow Fiber UF Membrane Welding Machine Tube PTFE Nonwoven Fabric 3
