|Layer:||One Layer, Two Layer Or Three Layer||Control:||PLC OMRON|
|Pneumatic Components:||SMC Cylinders||Detection Sensors:||Keynes, Japan Or Otis, Japan|
|Servo Motor:||Ankawa ,Japan||Line Track:||Shangyin, Taiwan|
|Besring:||NSK Nippon Ernsk||Speed:||0.8-1.6 / 2-4m/ Min|
Octagonal Disc Type Ro Membrane,
DTRO Octagonal Membrane Disc
Round DTRO Membrane Octagonal Plate Disc Tube Reverse Osmosis Module
The DTRO membrane cushions are sealed by ultrasonic welding. This welding technology has been proven over several years in different applications and with different membrane types.
The extremely short feed water path across the membrane followed by a 180 degree flow reversal eliminates polarization concentration.
Consequently, the PT Membrane-Module results in minimum membrane fouling and scaling. The permeate drains from the cushion's intermediate layer into the manifold with minimum flow path and minimum resistance.
|Material:||Polyamide TFC||Polyamide TFC|
|Outer Diameter (Octagonal)||188.3mm+/-1.0mm||188.3mm+/-1.0mm|
|Outer Diameter (Round)||184mm+/-1.0mm||184mm+/-1.0mm|
|*Nominal NaCl Rejection
|**Salt Rejection Range in Waste Water:||95.0%-99.0%||97.5%-99.5%|
*Test conditions: RO: NaCl 32,000.mg/L @55.2 bar.
**Final rejection depends on waste water characteristics, temperature, recovery rate, operation pressure, flow rate.
Cross replacement reference:
Our advantages: Cross replacement reference:

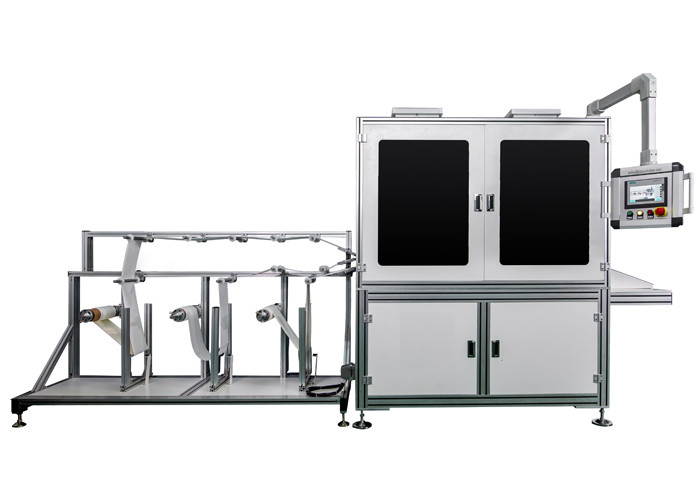

We also supply DTRO Membrane Welding Machine (also can do DTNF) especailly for making DTRO membranes. The DTRO membrane cushions are sealed by ultrasonic welding from our machine. This welding technology has been proven over several years in different applications and with different membrane types.
Disc Tube Reverse Osmosis Membranes also called DTRO Membranes. Round , Hexagonal and octagonal RO/NF membrane cushion used into the DTRO membrane module for water purification . The membrane cushions are sealed by our ultrasonic welding machine, which has been proven over many years in different membrane types & membrane applications.
1. Production beat: 2-4 pcs / min
2.Machine utilization rate: >92%
3. Qualification rate: ≥97%
4.Voltage: AC 220V single-phase three-wire system
7.Control voltage: 24V
8.Compressed air pressure:>0.6MPa Flow rate: 0.55m3/min
Production Speed: 2-4 pcs per min
Whole Machine Weight: about 330kgs
Empolyment: One person can operate 3 sets machines
Power Supply: Single-Phase Three-wire 220V 4.5KVA or customed
Discharge Mode: automatic discharging and counting
Round Hexagonal Octagonal RO/NF membrane cushion used into the DTRO membrane module for water purification . The membrane cushions are sealed by our ultrasonic welding machine, which has been proven over many years in different membrane types & membrane applications.
The machine can do two kind welding : multil-layer overlay welding or double-layer dislocation welding.
Function Configuration Information:
1. Pneumatic Components: SMC cylinders
2.Electronically Controlled PLC: OMRON Omron
3.Operation Interface: 7″ touch screen
4.Detection Sensors: Keynes, Japan or Otis, Japan
5.Servo Motor: Ankawa ,Japan
6.Line Track: Shangyin, Taiwan
7.Besring: NSK Nippon Ernsk
